Rocket ILR-33 Bursztyn

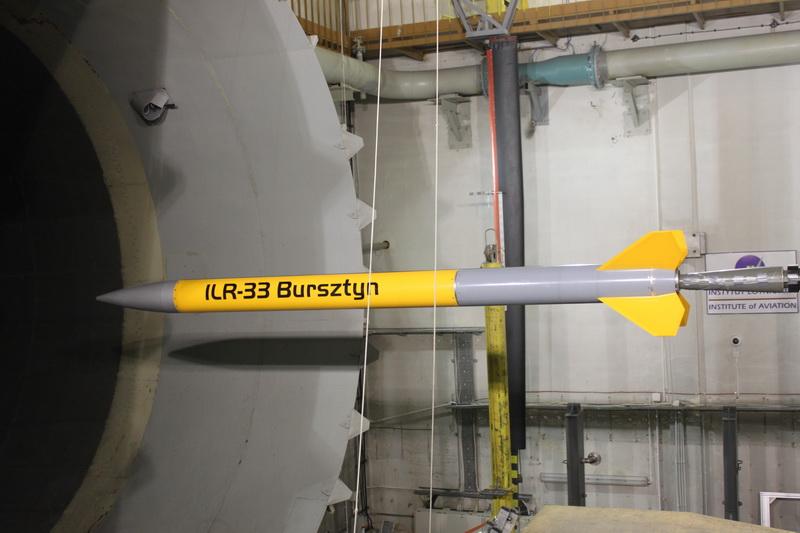

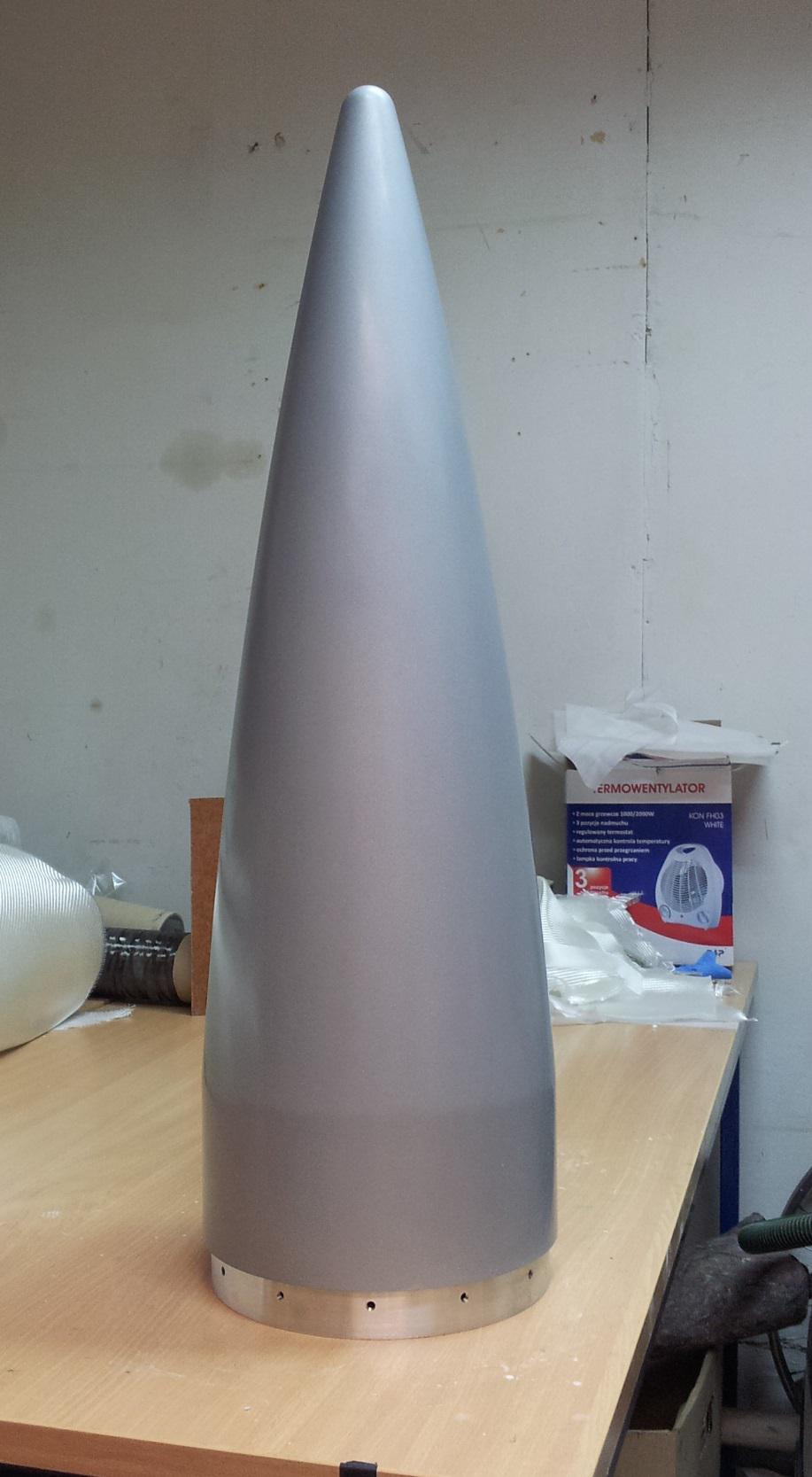

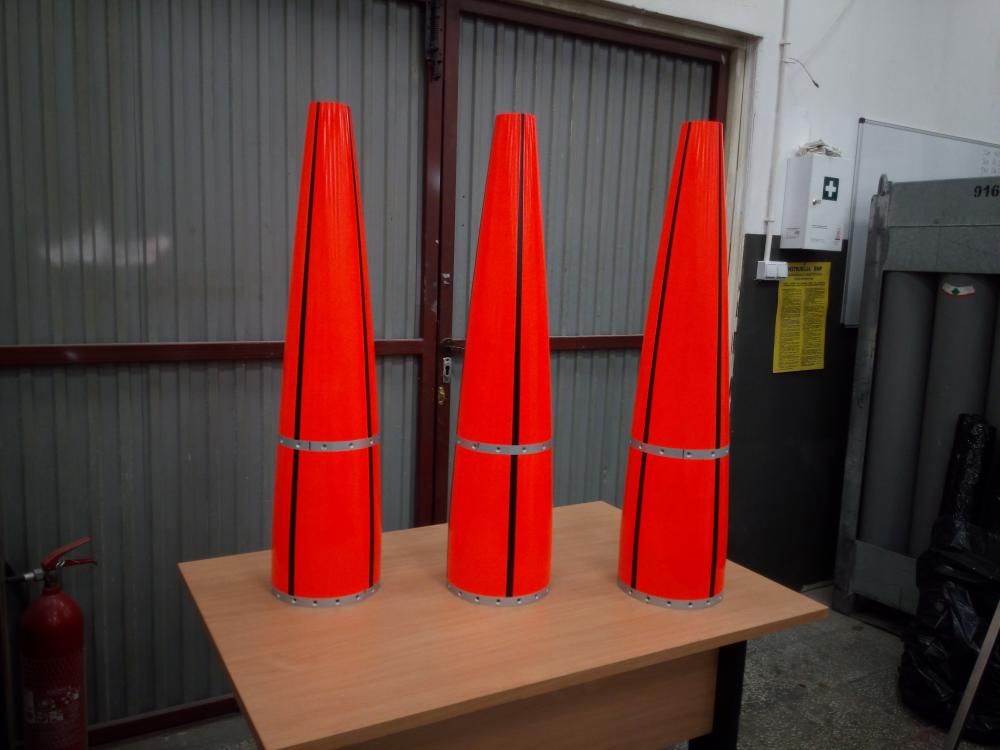

Composi-Tech has develope and prototype composite rocket head. In the first step the mock-up version has been built for the purpose of aerodynamic tests. In the second stage, after variety of modifications. ILot Composi-Tech has build series of composite rocket heads for tests:

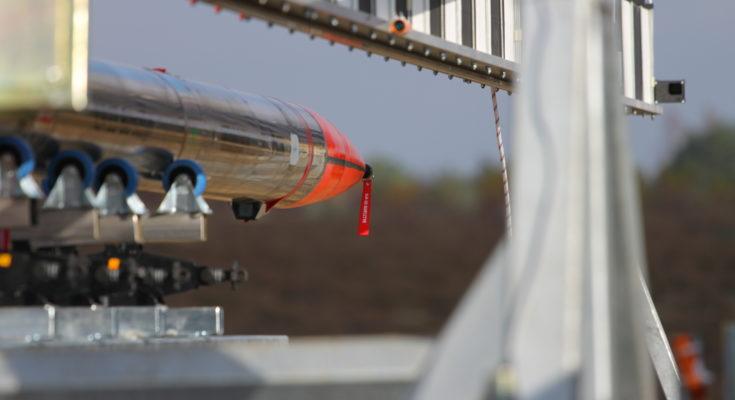

- land static tests

- impact tests

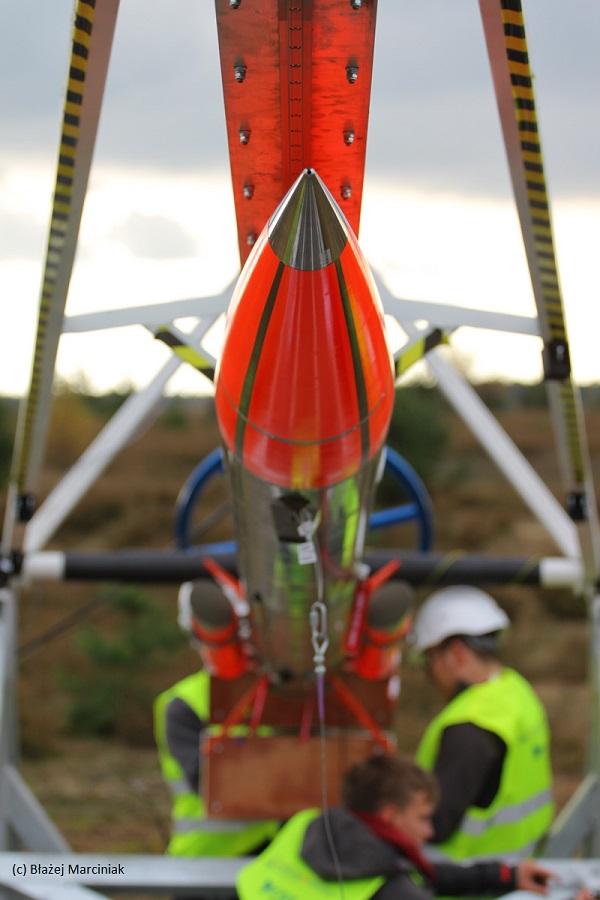

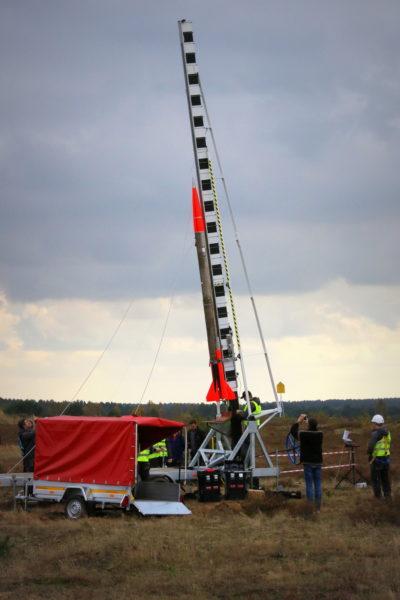

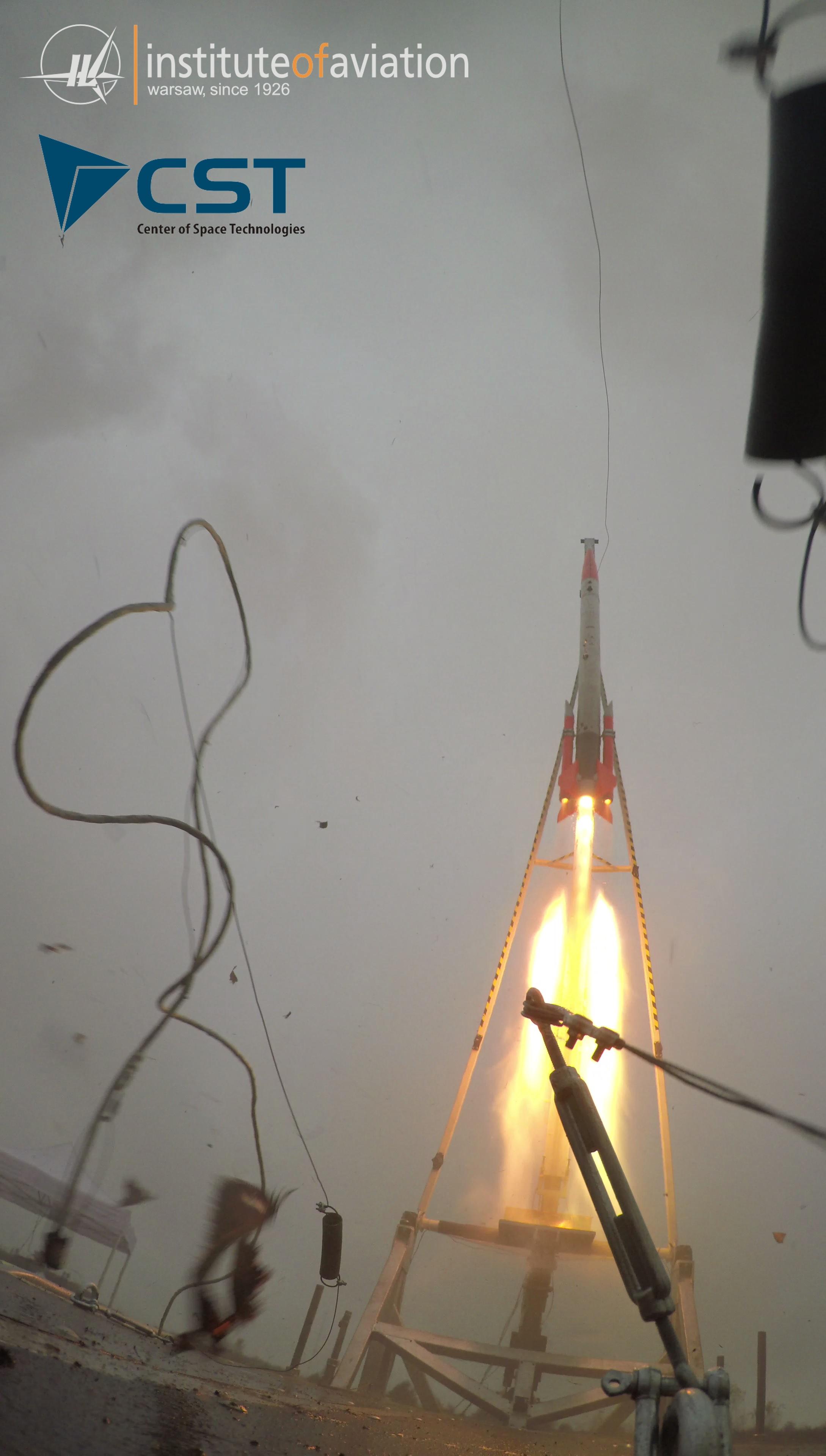

- flight tests

Copyrights: Institute of Aviation, Warsaw

About the project

Rocket head has to withstand high working condition temperature up to 600*C which apears when cruising velocity reaches M=4 (four times sound velocity). Special, high glass transition temperature for resin system had to be used. Also long thermal treament process had to be performed in the owen.

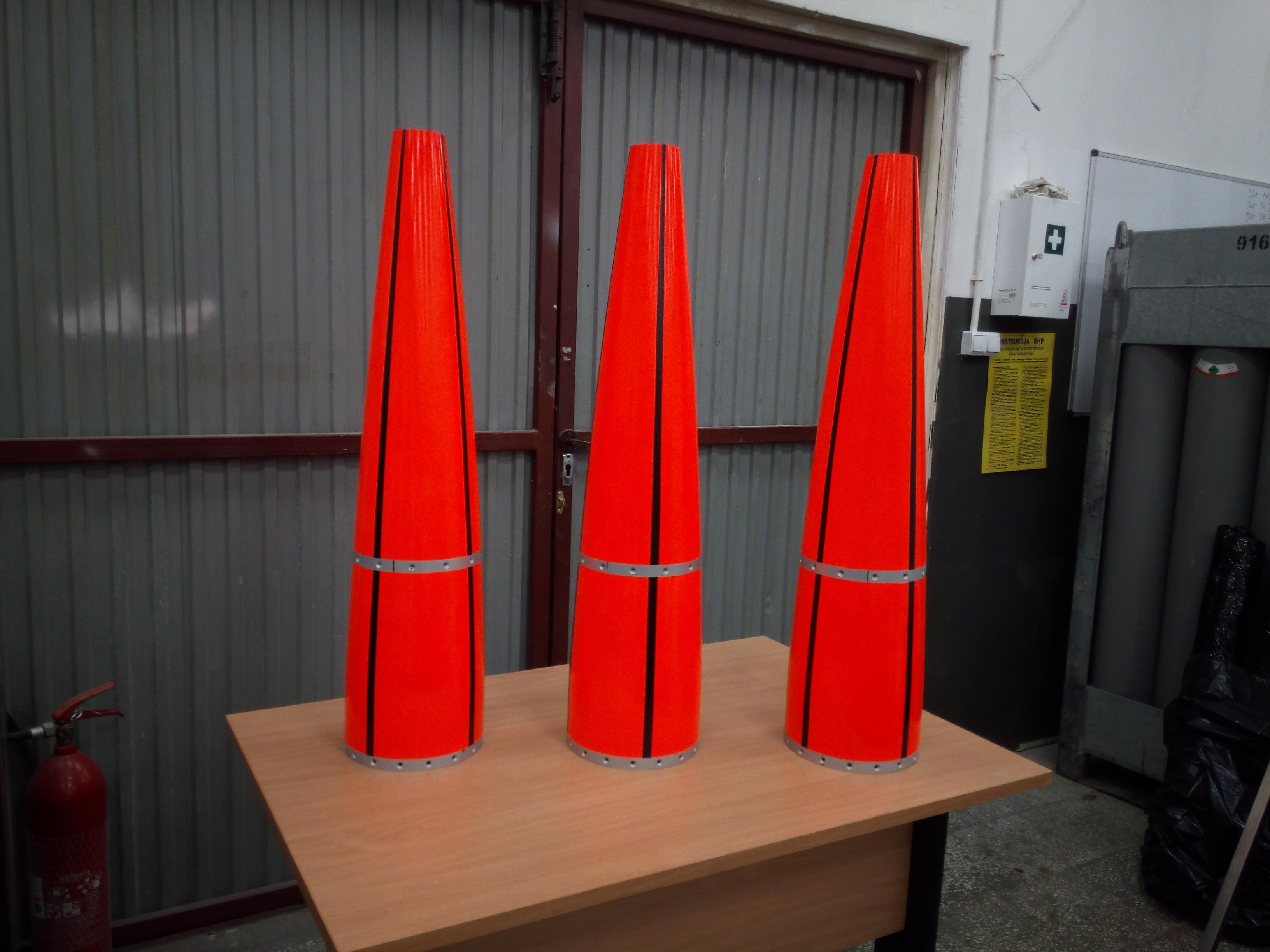

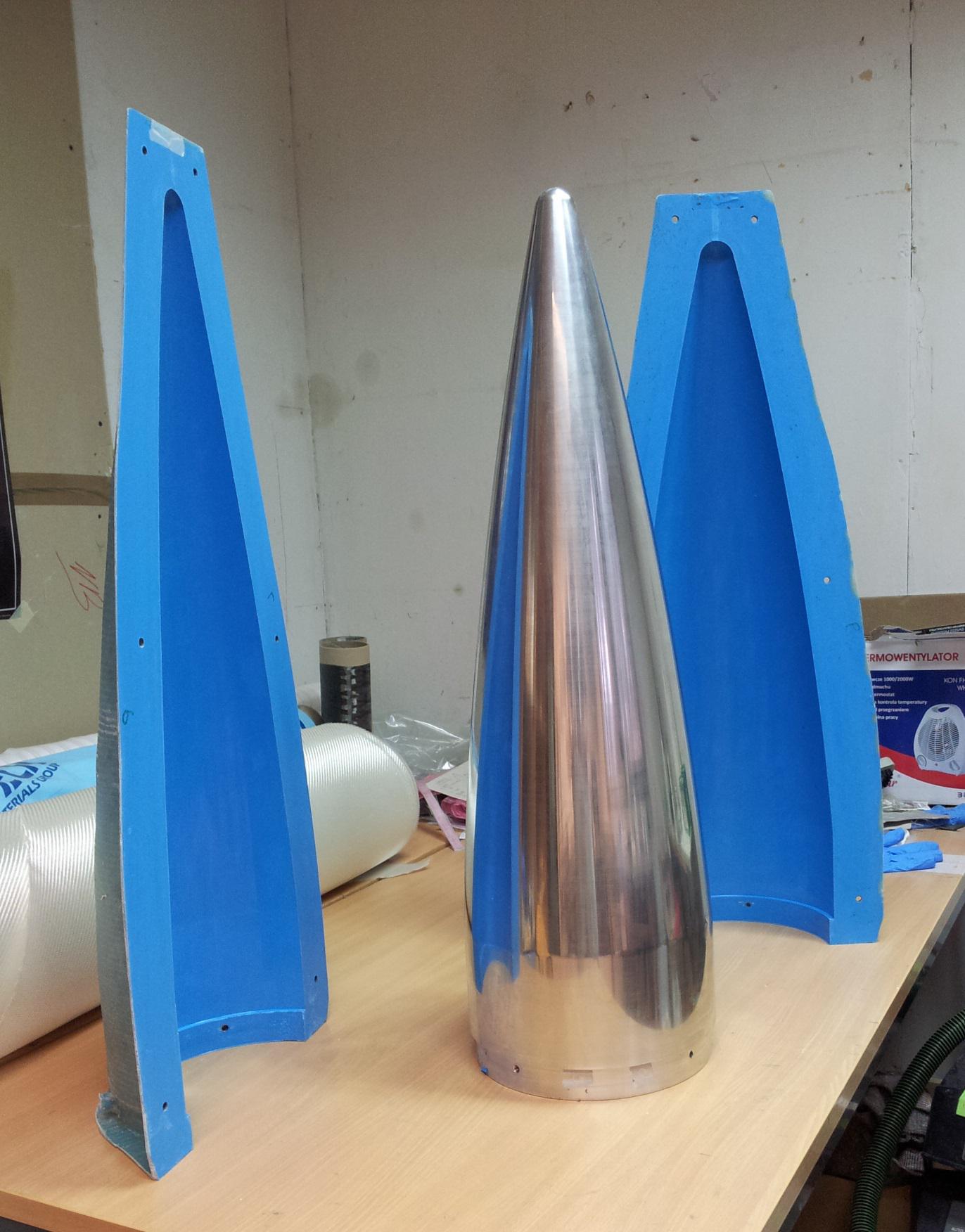

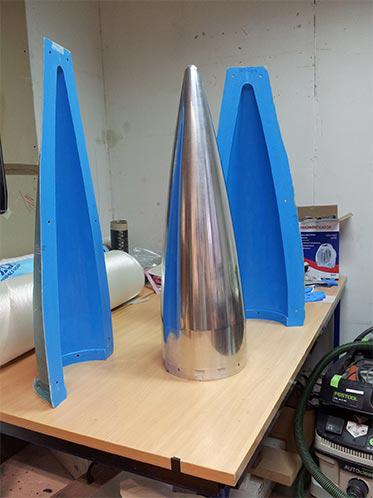

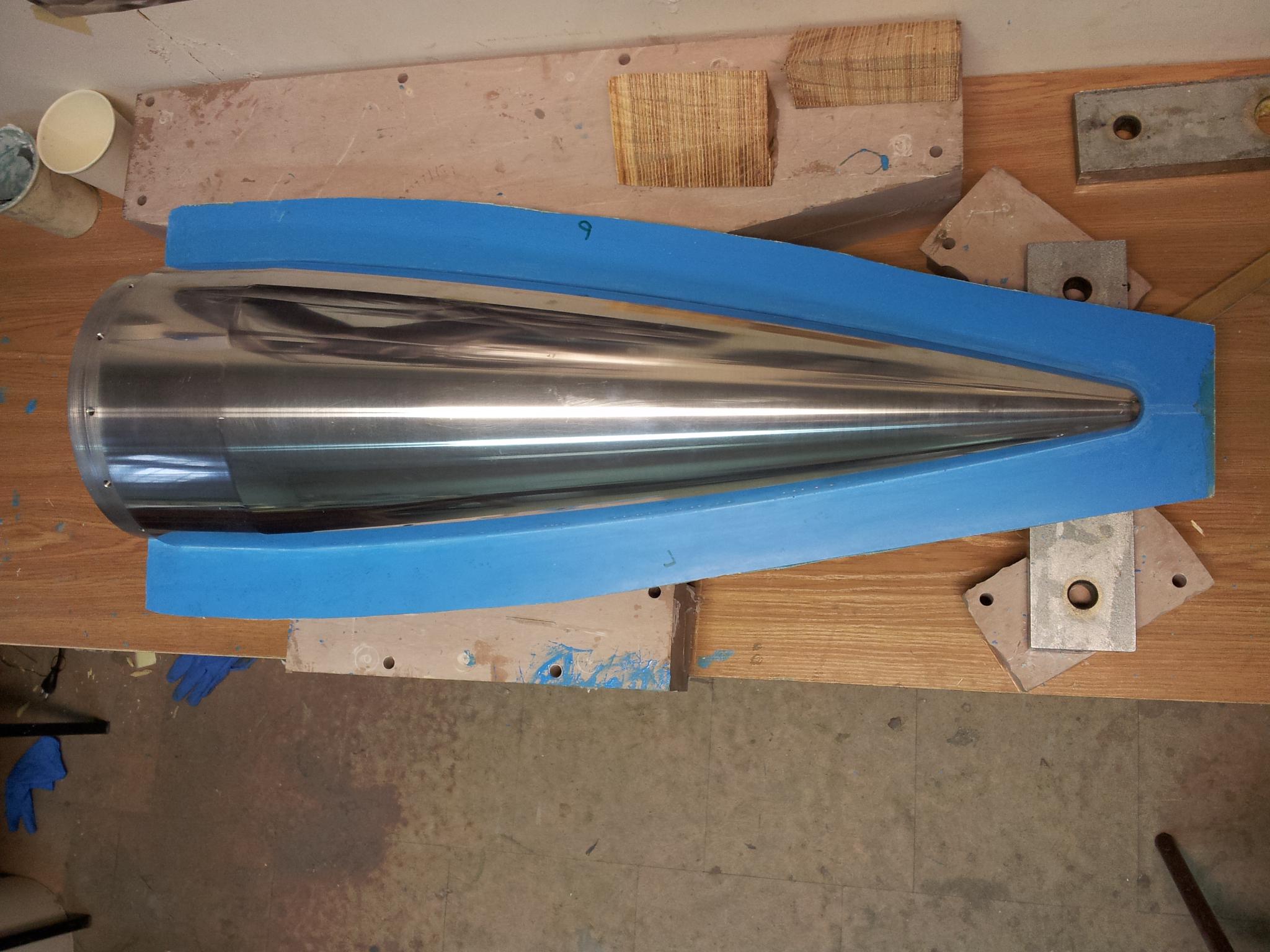

Composi-Tech has delivered composites rocket heads and molds.





MORE INFORMATION

General project and mission description
http://kosmonauta.net/2017/12/rakieta-ilr-33-bursztyn/



Precise structure description
https://www.sciencedirect.com/science/article/pii/S1270963817314669



Video presenting performed work
https://www.youtube.com/watch?v=Dlw61mwYI7E
